Storm Suspension Modifications Page 1 Page 2 Page 3 |

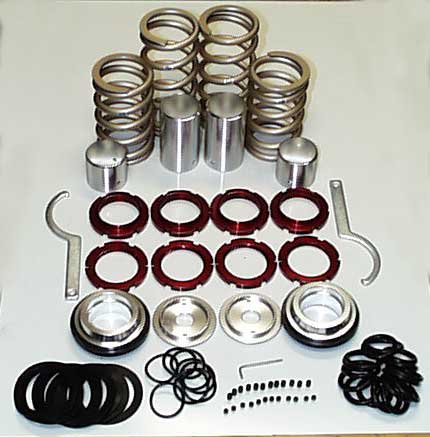

Geo Storm Coilovers!
Well, I took a look at the Honda Civic coilovers and thought that they were too small and most came with Urathane hats, and I didn't feel like grinding my struts or any other parts just to make them fit, so after mixing and matching Coilover parts and contacting a manufacturer,
I finally got all of the pieces that work!
UPDATE:It looks like some people have had to grind down/remove the top hat of their struts-mainly the rear struts.
Very easy to do as it only takes about 2 minutes with a grinder. The other option is to just remove the top hat of the strut. Just hit it with a hammer and it comes right off. |
Front
Rear

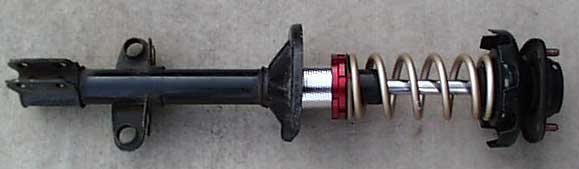

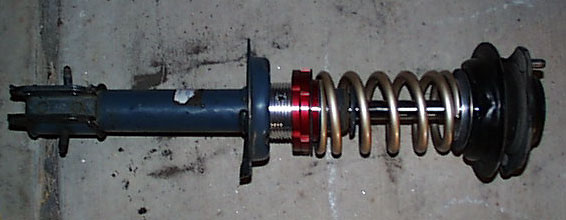

Here is a picture of the Coilover assembly.
It took about 15 minutes to install them on each front tire.
The minimum drop is 1 inch, and the max is 3 inches in the front. The minimum drop in the rear is 1" with 4" drop max. The spring rate is 450lbs for the front and 350lbs for the rear.
After the test drive, the handling is very stiff, but it feels very nice around turns.
If you are looking for a soft ride, these are not for you. These are Performance handling only. |

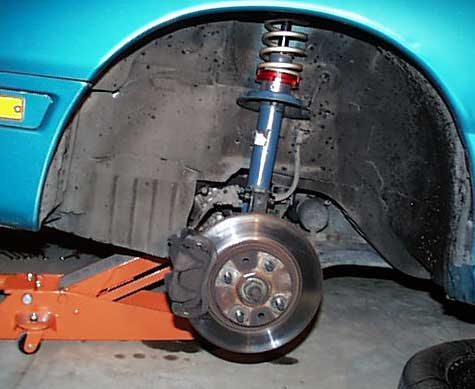

 This is what it looks like installed.
Want to buy a set? CLICK HERE
Eibach camber alignment kit - $24 at www.tirerack.com
|
Here are the preliminary Installation Instructions if you want to see how easy they are to install-Well, I think it was easy :-P
I will continue to clean up the formatting as it is pretty bad, but the pictures are clear and the text is easy to understand. |
Coilover Technical Description
These springs are hot rolled using alloy spring steel, heat
treated, stress relieved, pre-set, Epoxy/enamel painted.
The spring rate is 450 lbs. for the front, and 350 lbs. in the rear.
Hot rolling produces a spring with a consistent grain structure that is
extremely resilient and will not deform or change rate. The combination of hot
rolling and using only the highest quality alloy wire results in a spring with
superior performance and ride characteristics. For increased strength, the
spring perches are machined from hot forged AL6061-T6. These kits
allow you to adjust your ride height anytime you want. The front system allows
up to a 3" drop, and the rear allows up to a 4" drop. They provide more
suspension travel and therefore will ride better than a normal lowering spring,
even at extremely low settings. |
[!]If you are looking for a complete suspension kit, Let me know and I can assemble it for you and ship it to you.
The complete suspension kit would include:
- 4 Adjustable Coilovers--
- Aluminum sleeves
- Locking perches
- Aluminum centering top hats
- Spanner wrenche
- 4 KYB GR-2 Gas Struts
- 4 Upper strut mounts
- 2 Eibach Camber kits (front and rear)
- Installation Instructions
Note: Needs your upper metal spring seats
Price would be about $650 + Shipping- not too bad considering Midas charges $900 for just the struts and upper mounts with installation. *Note: These prices are subject to change due to shipping Fuel surcharges from UPS.
|
[/!]
